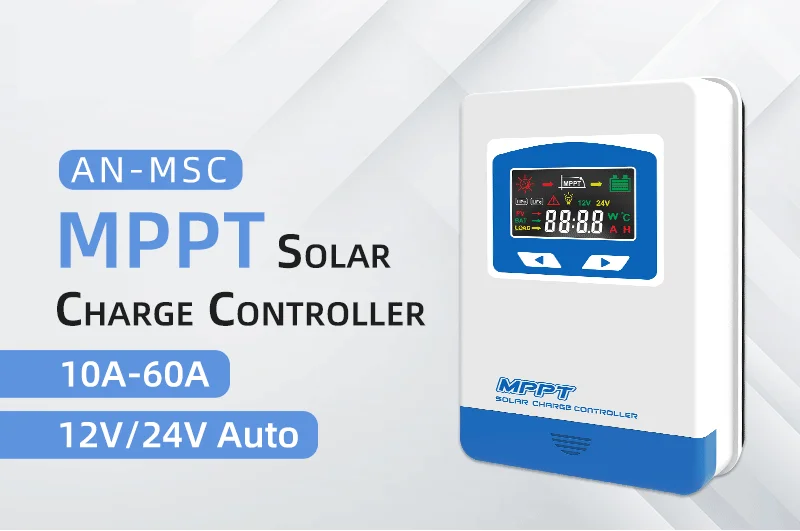

Advanced MPPT Solar Charge Controller - Professional 12V/24V Auto Battery Management System
Advanced MPPT Solar Charge Controller - Professional 12V/24V Auto Battery Management System
Couldn't load pickup availability
The Solar charge controller is a multi-level maximum power point tracking (MPPT) photovoltaic battery charge controller with its own technology. Compared with the PWM controller, the MPPT can improve the control accuracy and the output power of the solar panel can be increased by 5%-30%.
|
Model: |
AN-MSC-20A |
AN-MSC-30A |
AN-MSC-40A |
|
Rated Charge Current: |
20A |
30A |
40A |
|
Max Open Voltage of Solar Panel: |
60V |
75V |
100V |
|
Rated Voltage(Auto): |
12V/24V |
|

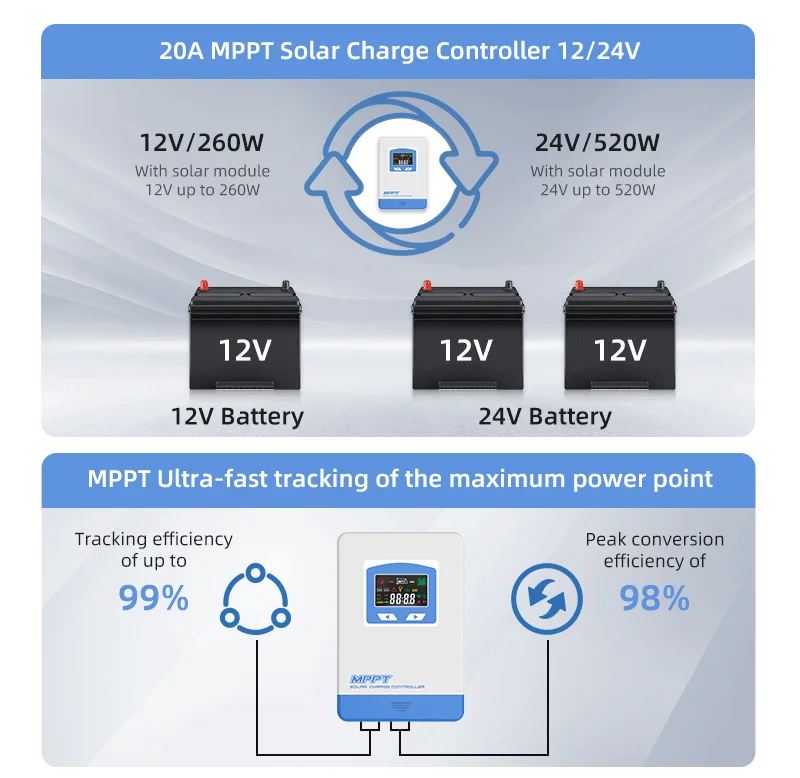

Maximum Input Power: |
|
12V: |
260W |
390W |
520W |
|
24V: |
520W |
780W |
1040W |
|
System Rated Voltage: |
12V/24V Auto Recognized |
|
Battery Voltage Range: |
8V-32V |
|
Output |
|
Rated Discharge Current: |
20A |
30A |
|
Static Loss: |
≤50mA |
|
HVD: |
Lead acid battery 16V |
|

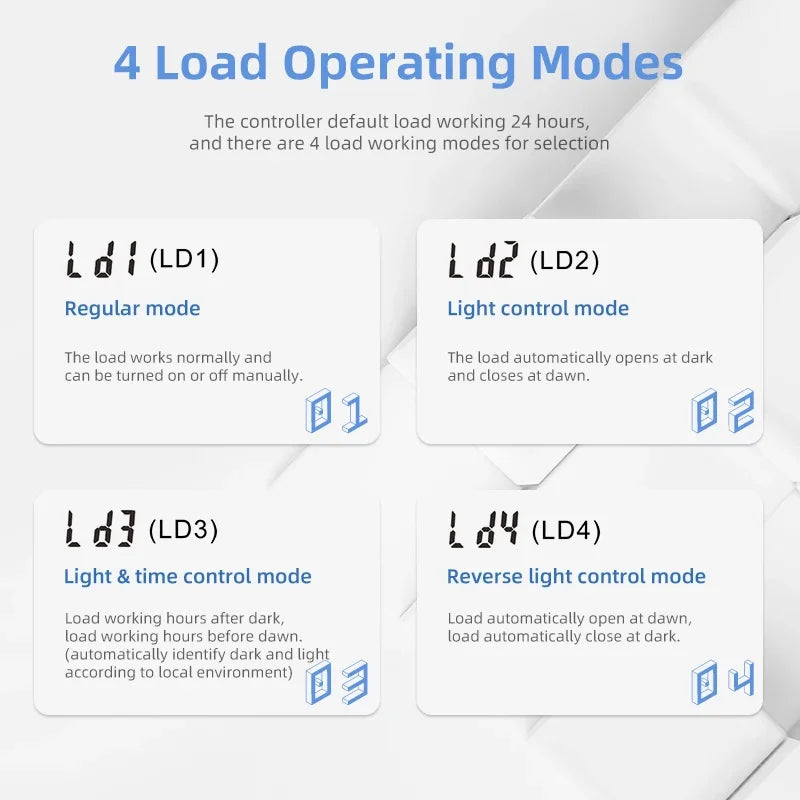

Light Control Voltage: |
5V/10V |
|
Working humidity: |
≤90%,No condensation |
|
Protection Class: |
IP30 |
|
Grounded Type: |
Positive Grounded |
|
Aperture for installation: |
Φ5mm |
|
Temperature compensation coefficient: |
-4mV/℃/2V(25℃) |
|
Discharge loop voltage drop: |
≤0.2V |
|
LCD temperature: |
-20℃~+70℃ |
|
Operation temperature: |
-20℃~+55℃ |
|
Storage temperature: |
-30℃~+80℃ |
|

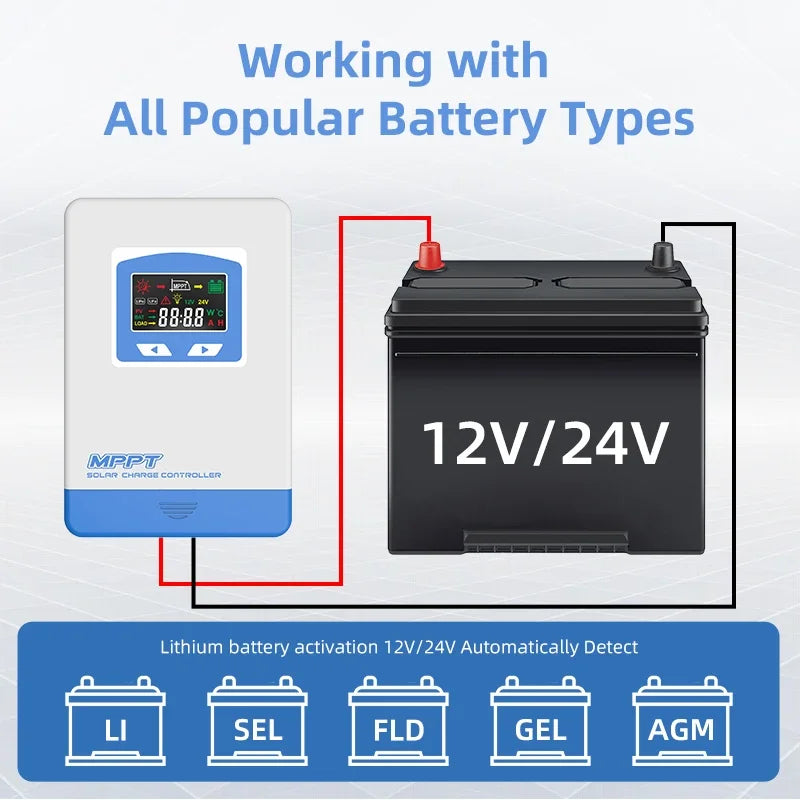

Battery Type: |
User default,Sealed,Flooded,GEL.LiFePo4,Li(NiCoMn)O2. |
|
Equalized Charging Voltage: |
Maintenance-free lead-acid battery:14.6V,GEL:No;Lead-Acid Flooded battery:14.8V.Duration:2hours |
|
Absorption Charging Voltage: |
Maintenance-free lead-acid battery:14.4V,GEL:No;Lead-Acid Flooded battery:14.6V.Duration:2hours |
|
Float Charging Voltage: |
Maintenance-free lead-acid battery, GEL, Lead-Acid Flooded battery |
|
LVR: |
Maintenance-free lead-acid battery, GEL, Lead-Acid Flooded battery:12.6V. |
|
LVD: |
Maintenance-free lead-acid battery, GEL, Lead-Acid Flooded battery:10.8V. |
